1699.00 €
| Battery Capacity | 2240 Wh (50 Ah / 44.8 V) |
|
Battery Type
|
LiFePO₄ (lithium iron phosphate battery)
|
|
Lifecycle
|
≤ 6000 times (80% DOD)
|
|
Frequency, Hz
|
50/60 |
|
PV MC4-Input×2
|
12-59 V / 8.47 A 2×500 W max.
|
| DC MC4 Output×2 |
42-50.4 V / 9.52 A 2×400 W max.
|
|
Extra Battery Port
|
at the Input 44.8-51.1V max. 35A, per Output 42V-51.1V max. 30A
|
|
Bluetooth
|
5.2 |
|
Wi-Fi
|
2.4G
|
|
Maximum Power (Pmax), W
|
2×430*
|
|
Conversion factor (efficiency, %)
|
22
|
|
Voltage at Pmax (Vmp), V
|
31.88 |
|
Current at Pmax (Imp), A
|
13.49
|
|
Open-Circuit Voltage (Voc), V
|
38.49
|
|
Short-Circuit Current (Isc), A
|
14.23 |
|
Maximum System Voltage, V
|
1500
|
|
Fire Rating
|
Class C
|
| PV Module Classification |
Class A
|
| Maximum Input Voltage (DC), V |
60
|
| Range of Input Operating Voltage (DC), V |
25~55
|
| Nominal Output Current, A |
3.5
|
| Max Output Apparent Power, VA |
800
|
| Rated Output Power, W |
800
|
| Peak Efficiency |
96.5%
|
| EAN code |
4260405367313
|
Assembled in the PRC.
*Tested at STC (Standard Test Conditions) 1000W/m2; AM1.5; and 25°C
Balcony solar systems by Könner & Söhnen® are an advanced solution in the balcony system series, enabling significant savings on electricity costs by using100% of solar energy. Built upon the "Smart" LiFePO4 lithium-iron-phosphate battery block with high-capacity batteries, high-efficiency solar panels, and an 800 W microinverter.

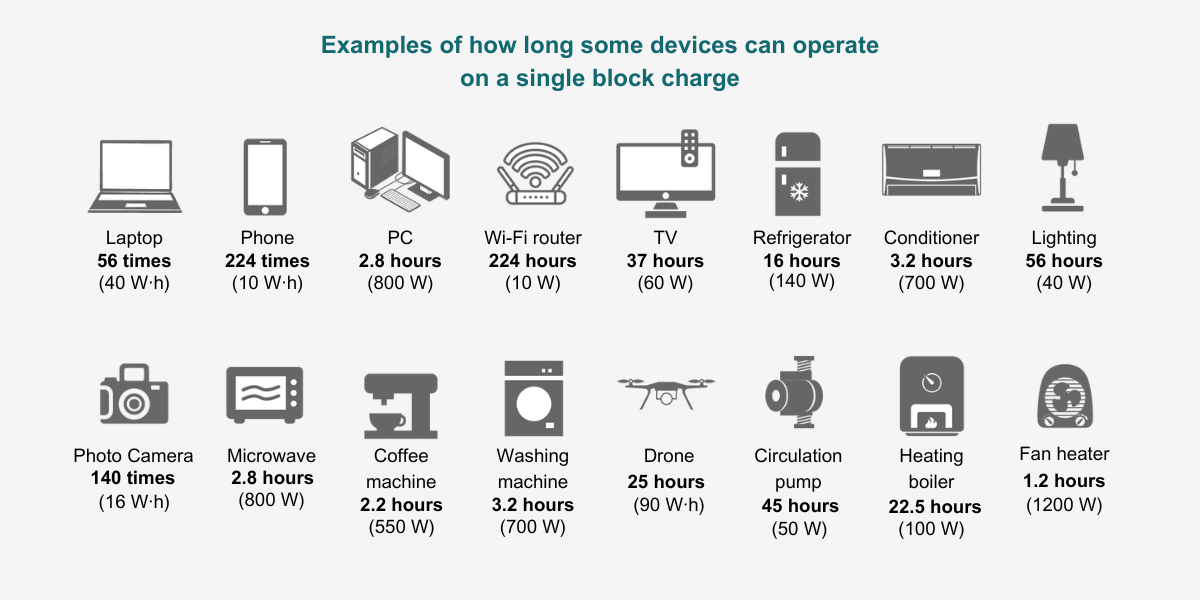

The use of storage battery blocks enables free use of solar electricity during evening hours or on days when solar energy is insufficient. With the Könner & Söhnen® system, there is no energy loss - you can store unused solar energy in the battery block and consume it in the evening or when sunlight is insufficient.
|
UP TO 800 W PER HOUR FOR FREE Every hour, the microinverter generates up to 800 watts of electricity from free solar energy for your residential or commercial needs, significantly reducing electricity bills. |
TOPCON AND HALF-CELL Solar photovoltaic panels manufactured using the latest TOPCon technology feature a doubled Half-Cell design, distinguished by higher efficiency and improved resistance to dirt. |
 |
PRESERVATION OF NATURAL RESOURCES AND COST SAVINGS
|
The simple installation of the solar system does not require special preparation or specific mounting structures; even someone with little experience can easily install it. Panels can be installed on balcony railings, roofs, any awning, garage, greenhouse, etc. They do not take up much space and enable very efficient use of the area.
Modern Könner & Söhnen® solar systems can be used for various needs, both residential and commercial, ensuring significant savings on electricity expenses thanks to its unique software. This intelligent system enables the adjustment of energy storage or consumption based on time and individual user needs.
|
LONG SERVICE LIFE Könner & Söhnen® battery blocks provide an incredible 6000 charge-discharge cycles* - which means more than 10 years of daily use.*at 80% DOD, 0.2C charge and discharge, 25°C±2°C |
SILENT AND ECO-FRIENDLY These eco-friendly energy sources do not produce harmful waste during operation, have minimal noise levels - an ideal solution for those who value peace. |

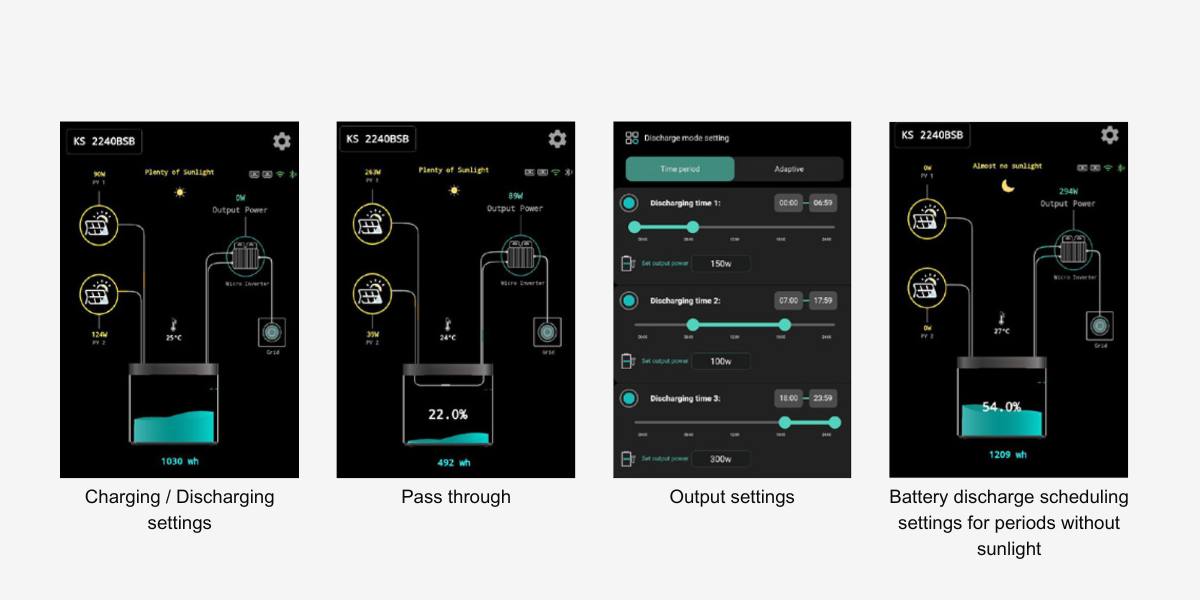

Könner & Söhnen® balcony systems are designed with the ability for highly individual settings tailored to meet user needs. They offer the option to choose different charging scenarios with priority settings and output power adjustment based on time periods.
|
2 INDEPENDENT INPUTS The battery blocks have 2 independent inputs for connecting solar panels with MPPT controllers per each! They enable the maximum efficiency in capturing energy from each panel separately! |
2 INDEPENDENT OUTPUTS The blocks also have 2 independent outputs with a power of up to 400 Watts each, ensuring proper operation with a microinverter and enabling various power supply options. |
A HIGHLY EFFICIENT SYSTEM WITH THE OPTION OF SCALABILITY
|
Könner & Söhnen® microinverter has the ability to connect two separate battery packs to store a larger amount of solar energy. The Könner & Söhnen® microinverter boasts high efficiency of up to 96.5% and generates up to 800W of electricity from free solar energy into your grid every hour! It features a specially designed aluminum structure with enhanced heat dissipation, extending the lifespan of the device. It is distinguished by easy installation and simple operation. |
 |
The KS SP430-HC solar photovoltaic panels are manufactured using TOPCon technology – the latest innovation, significantly more efficient compared to PERC/PERT solar cells, which have a very similar structure. Panels of this type have higher efficiency. A lower temperature coefficient, less than 0.3%, significantly improves their performance in a lot of extreme weather conditions. The structure of the TOPCon N-type solar cells used in Könner & Söhnen® panels is more efficient than the P-type structure and is more resistant to dirt! Half-Cell type - doubled the number of cells. The panels are the same size as full-cell panels, but the double cells increase the capture of solar energy. |
|
Monocrystalline silicon module - high-quality silicon monocrystalline elements are distinguished by the best performance indicators, including productivity, practically requiring no maintenance, and such modules have the longest lifespan (up to 50 years). The average bifacial factor for PERC photovoltaic modules is around 70%. TOPCon solar panels have demonstrated a bifacial factor reaching 85%. Additionally, the structure of such solar cells is more resistant to dirt. |
|
Our KS BSP2 solar panel mounts will help you efficiently use the space on your balcony You can choose the most optimal mounting option depending on individual housing conditions: 1. Vertical or horizontal positioning of the panels 2. Placement directly on the balcony enables you to install the panels at the necessary angle to the sun, maximizing their efficiency. 3. Placement outside the balcony - in this case, they become almost invisible, and the balcony remains fully at the user's disposal. |
We value the environment and strive to minimize the impact of our products on the external surroundings. Therefore, we are implementing the latest technologies that enable us to reduce the harmful effects on the environment.
