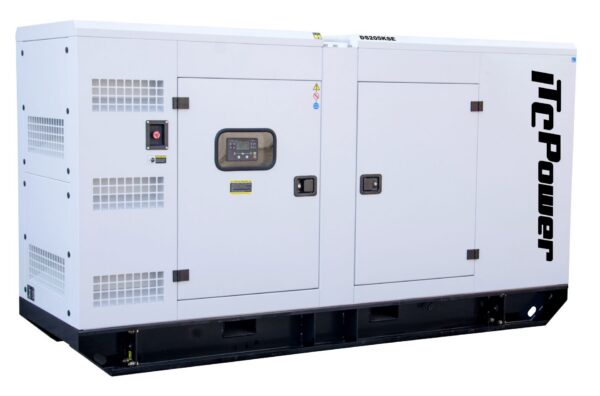

ITCPOWER DS205KSE 165 kW diesel generator

Free delivery within Estonia!

DELIVERY TIME UP TO 21 WORKING DAYS

* Includes VAT 24%

Prime Power 187.5 KVA / 150 KW
Standby Power 206.3 KVA / 165 KW
Power factor 0.8
Frequency 50 Hz
Rated voltage 400/230 V
Rated current 271.4 A
Controller IL4-AMF9
Control voltage 24 DC / V
Battery Capacity 120×2 Ah
Coolant capacity  42 L
Kütusepaagi maht (raam) 345 L
Fuel consumption 39.7  L/h
Working hours 9.4 h

Advantages and features

  • High-quality motor: The vehicle is powered by a durable ITCPower engine, which offers low fuel consumption and reliable performance.

  • Brushless generator: A high-quality, high-performance brushless AC generator with an automatic voltage regulator (AVR).

  • A top-of-the-range controller: Equipped with COMAP AMF9 with a control unit.

  • Block-design electrical system: The design of the control system makes operation and maintenance straightforward.

  • Integrated fuel tank: The standard specification includes a fuel tank located inside the frame, which provides 8 hours of operating time (at a load of 100%).

  • Easy to transport: The frame has openings for a forklift, and the body has lifting points for moving it with a crane.

  • Industrial-grade, weatherproof housing: Ensures the generator runs without interruption in all weathers.

  • Industrial silencer: Low noise level (at a distance of 7 metres, the noise level is below 70 dB).

  • User-friendly interface: Industrial sockets and plugs with an IP66 protection rating.

  • Security: Four-pole circuit breaker with residual current protection (RCD).

  • Automation readiness: Standard ATS (automatic switching) plug connection.
