Kaasaskantav jõujaam KS 2500 PS

Rated power, W
2500
The shape of output

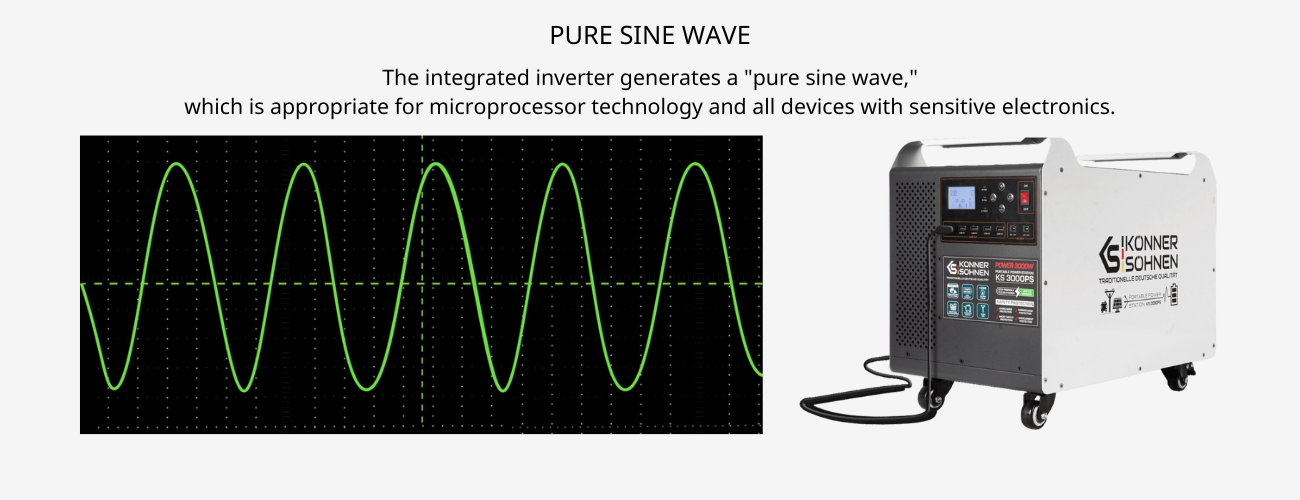

Pure Sine Wave
Battery capacity
100 Ah/2560Wh
Battery type
LifePo4 (lithium iron phosphate battery)
Lifecycle
≤6000*
Nominal battery voltage (DC), V
25.6
Efficiency
90%
PV charging current, max , A
60
Efficiency of the MPP converter
98% max
Maximum idle voltage from solar panels (DC), V
145
MPPT voltage range from solar panels, V
30~128
Maksimaalne laadimisvõimsus PV sisend/AC sisend, kW
1.6/1.6
Nominal input voltage
230 ± 5%
AC output
3× Schuko 230 V
DC output
2 × DC 12V
Input Voltage Range (AC), V
90-280
Frequency, Hz
50
Transfer Time, ms
10 (UPS, VDE); 20 (APL)
Laadimisvool (AC), A
60
USB output
4 × tüüp A (5V)
Tüüp C väljund
1 × tüüp C (5V)
Net dimensions (LxWxH), mm
450x 370 x 320
Gross dimensions (LxWxH), mm
485 x 420 x 356
Net weight, kg
31
Gross weight, kg
33
EAN code
4260405367993

Assembled in PRC.

*≤6000 tsüklit laadimisvoolul 0,2 C ja tühjendusvoolul 0,5 C 80% DOD juures.

*≤4000 tsüklit laadimisvooluga 0,5 C ja tühjendusvooluga 0,5 C 80% DOD juures.





The new powerful portable power stations from Könner & Söhnen® are an innovative solution characterized by reliability, mobility, economic efficiency, and ecological safety.

Need kaasaegsed multifunktsionaalsed seadmed ühendavad endas akusalvestussüsteemi, inverteri koos PV laadimiskontrolleriga ja UPS-i.

Lisaks on neil suur mahutavus ja suurem energiatihedus, olles samal ajal õhukesed ja kerged.

LiFePO4



RECHARGE CYCLES!

Our power stations, based on high-quality lithium iron phosphate batteries, provide an impressive 6000 recharge cycles.

Nende tööiga on kaks korda pikem kui liitium-ioonakudel. Lisaks on neil suur mahutavus ja suurem energiatihedus, olles samal ajal õhukesed ja kerged.



4 EKSKLUSIIVSET EELIST



MOBILITY AND AUTONOMY

Mobile use and quick installation - solar inverter + battery in one enclosure with convenient handles and wheels. No need for a fixed connection! No special permits, electricians, etc., required. The station can be easily used anytime, anywhere.
UNINTERRUPTIBLE POWER SUPPLY

These modern charging stations can function as an uninterruptible power supply unit - a device that provides automatic power supply in case of a power grid failure. The station will transfer voltage to devices within milliseconds.

HIGH CHARGING POWER

From solar panels - up to 1.65 kW! In just 1 hour your KS 2000PS station will replenish the charge up to 80%.

NO LOSSES

Thanks to the integrated charging module from an external AC source with PFC power factor corrector, there are no reactive power losses, which significantly improves the operation of the generator. The station maximizes the efficient use of energy provided by the generator.



EXAMPLES OF USE



   BACKUP POWER SUPPLY FOR ELECTRIC VEHICLES

Backup power supply for electric vehicles: the station can be used as a backup power source for electric vehicles that can be easily transported, requiring minimal space in the trunk.



ENERGIAALLIKAS AUTO KATUSELE PAIGALTATUD  PÄIKESEPANEELIDELT

Jaam saab päeval koguda energiat autovarjualuse katusele paigaldatud päikesepaneelidest ning õhtul laadida autoakut või muid elektrisõidukeid.



KODU VARUTOIDE

Kodu varutoiteallikas – teil on alati vaba energiavaru, mida saate kasutada õhtul, kui elektrikulu on kõige kallim.




Könner & Söhnen® stations are easily portable, perfect for trips out of town - they are compact and very easy to connect. They come with a powerful integrated charging module. By connecting several solar panels to the station, you'll have a complete power station - a renewable energy source always at hand.







A BACKUP POWER SOURCE FOR COUNTRYSIDE LEISURE

Könner & Söhnen® stations are easily portable, perfect for trips out of town - they are compact and very easy to connect. They come with a powerful integrated charging module. By connecting several solar panels to the station, you'll have a complete power station - a renewable energy source always at hand.



ON CAMPING

Power stations from Könner & Söhnen® are convenient 'All-in-One' devices - they combine a rechargeable battery, a solar inverter with the ability to connect solar panels, and an uninterruptible power supply system with pure sine wave output. They are excellent for powering sensitive equipment, perfect for outdoor activities, and feature 10 outlets for connecting various devices simultaneously. Equipped with transport wheels and handles for easy transportation.





ENERGY SOURCE FOR BUSINESS

An autonomous energy source for your business (retail outlets, outdoor events, etc.). With a powerful power station, you can achieve full independence from the central power grid and operate in remote locations. With sufficient energy from solar panels, your devices will be powered by free solar energy, and in the evening or during days with insufficient sunlight, you can use the energy of the generator with maximum efficiency thanks to the unique combined power supply system 'Generator-Power Station'.
Using the combined K&S system, the generator doesn't need to run for extended periods, wasting fuel by producing extra energy! The system operates at maximum efficiency without energy loss.



The combined power supply system from Könner & Söhnen® includes:

  • Generaatori tööaeg on lühendatud
  • Madalamad kütusekulud
  • Vähendatud mürasaaste
  • Suurem mugavus tööle ja külastajatele



MULTIPLE PORTS



These power stations feature 10 outputs for connecting various devices simultaneously.
Different types of connectors enable the use of a wide range of electrical devices.



MULTI-LEVEL PROTECTION AGAINST:



• CURRENT OVERLOAD  • OVERHEATING
• OVERCHARGE / EXCESSIVE DISCHARGE •  LÜHIS



AREAS OF APPLICATION



MAJAS

VÄIKEETTEVÕTTES

KORTERIS

VÄLISÜRITUSTEL

TÖÖKOJAS

REMONDITÖÖDEL

KULUDE SÄÄST

By connecting solar panels to the power stations, you can harness free solar energy, significantly reducing your electricity expenses. Additionally, you can save money by accumulating electricity from the central grid during the night when rates are lower and use it during the day.

VAIKNE JA MOBIILNE

These devices emit minimal external noise during operation, so you can use the device in close proximity and still enjoy a normal lifestyle. This is the ideal solution for those who value calmness. Equipped with wheels and handles for convenient transportation.

COEFFICIENT OF PERFORMANCE

The Portable Power Station has a Coefficient of Performance (COP) of 90%, indicating high efficiency in energy conversion.

EASY TO USE

Need elektrijaamad on kasutajasõbralikud ega vaja keerukat tehnilist laadi
